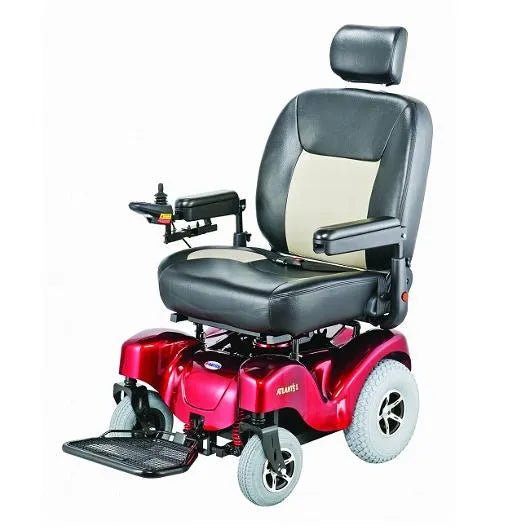

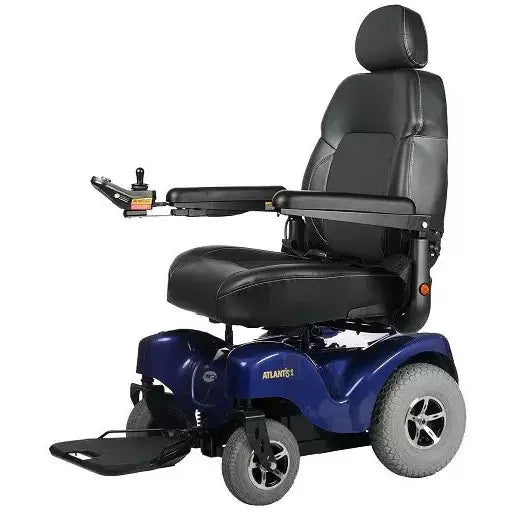

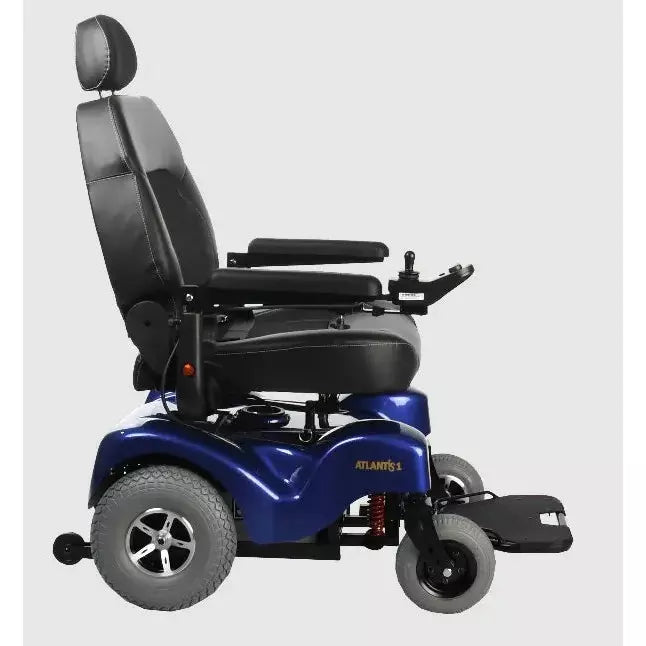

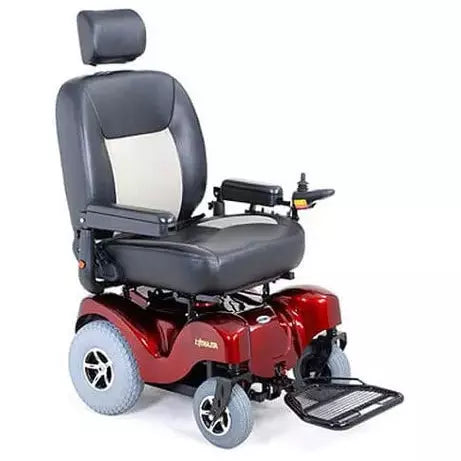

The Atlantis Heavy Duty Power Chair by Merits Health gives you the durability and comfort of a standard power chair with the added benefits of heavy duty construction and design. With a 31.5-inch turning radius, 12-inch drive wheels and a high-powered motor, the Atlantis Heavy Duty Power Chair will get you where you need to go with ease.
Why We Like It
The durability of the Atlantis Heavy Duty Power Chair is evident with its four-post seat base, which provides more stability to the power chair’s frame. The extra-wide, extra-high back Captain’s Seat is keeps users with a higher weight comfortable and supported while zooming around the neighborhood. The high, 32-mile drive ranges provides peace of mind while out on the go.
What Makes This Different
The Atlantis Heavy Duty Power Chair was designed with user enjoyment in mind. The high-back Captain’s Seat and padded armrests comfortably seat up to 600-pounds, ensuring a pleasant ride. The 12-inch drive wheels and 9-inch casters combined with the 3 inches of ground clearance let you easily maneuver over small obstacles while driving around town. The Atlantis’ high-powered in-line motors give you enough power to climb a 10-degree ramp, your driveway or even an uphill sidewalk.
| Drive Range: | 32.00 miles |
| Top Speed: | 5.00 mph |
| Disassembles: | No |
| Heaviest Piece: | 167 lbs. |
| Turning Radius: | 31.50" |
| Ground Clearance: | 3.00" |
| Tire Type: | Air Filled |
| Maximum Incline Rating: | 10° |
| Drive Type: | Rear Wheel Drive |
| Foldable: | No |
| Armrest Options: | Height Adjustable Flip-Back Width Adjustable |
| Legrest Options: | Footplate Upgradable Elevating Legrests |
| Seat Options: | Captain's Seat |
| Power Chair Seat Width: | 24" |
| Seat Depths: | 20" |
| Back Height: | 25" |
| Maximum Seat to Floor Height: | 24" |
| Overall Width: | 27" |
| Overall Length: | 44" |
| Joystick Options: | Right Left |
| Adjustable Hanger Brackets: | No |
| Battery Type: | 12V, Group 24 |
| Batteries Included: | Yes |
| Battery Charger Type: | Off Board |
| Drive Wheel Size: | 12" |
| Caster Size: | 9" |
| Battery Pack Weight: | 86.00 lbs. |
| Weight Without Batteries: | 218.00 lbs. |
| Controller Type: | Dynamic Shark 60A/PG VR2 60A |
| Suspension: | No |
| Seat Width Ranges: | 24" - 25" |
| Weight: | 304 lbs. |
| Shipping Weight: | 317 lbs. |
| Length: | 43.00" |
| Width: | 29.00" |
| Height: | 25.00" |
 |
|
 |
|
Seat Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
All Merits Health products can be returned within 30 days from receipt of shipment. All items returned must be in new condition, in the original boxes and have original packaging. A 20% restocking fee and freight/shipping charges both ways will apply for most returns.
Our goal is to keep the ordering process as simple as possible. Shipping times vary from 1-3 business days and delivery time varies between 3-12 business days if your ordered item is in stock.
